Technical Specifications
- Brand: GIGABYTE

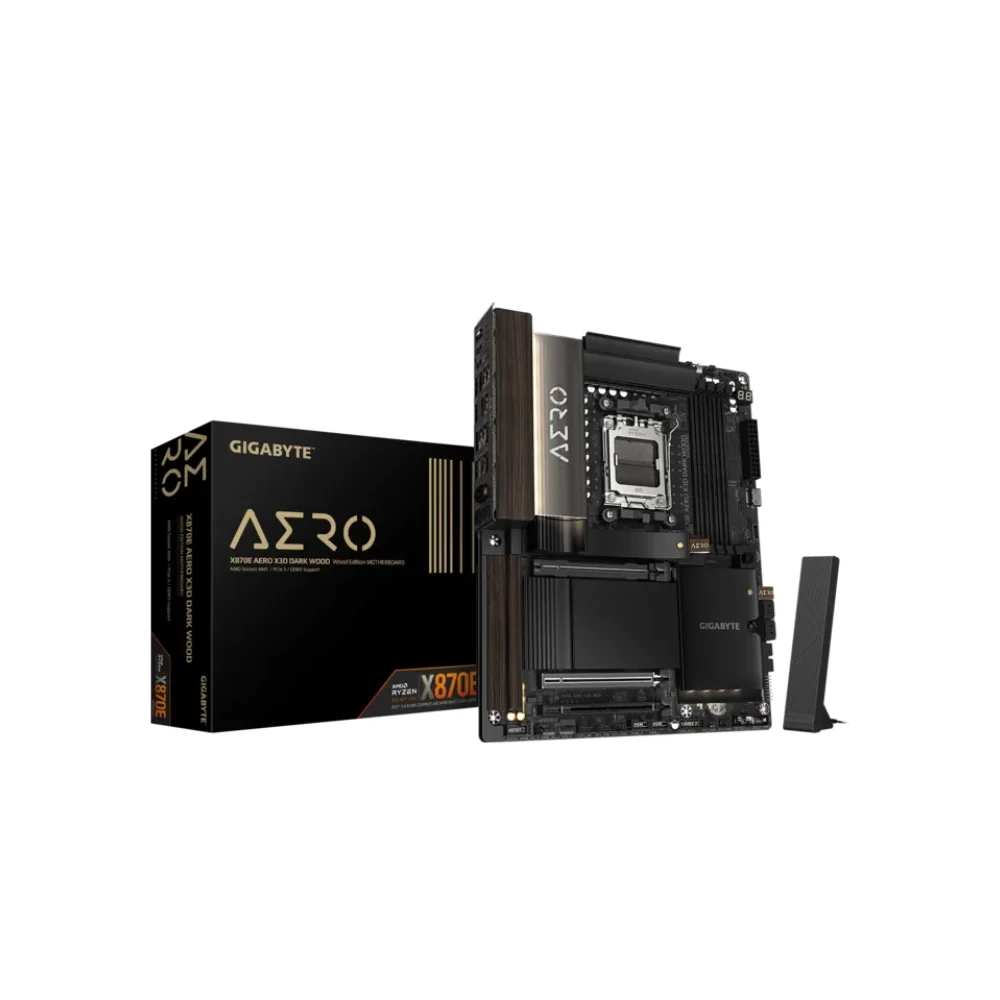

- Model: X870E AERO X3D WOOD
- Form Factor: ATX
- Chipset: AMD X870E
- CPU Socket: AMD Socket AM5
- Processor Support: AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Memory Support:
- 4 × DDR5 DIMM Slots
- Up to 256GB Memory
- DDR5 up to 9000+ MT/s (OC)
- AMD EXPO™ & Intel XMP Support
- Expansion Slots:
- 1 × PCIe 5.0 x16
- 1 × PCIe 5.0 x16 (x8 Mode)
- 1 × PCIe 4.0 x16 (x4 Mode)
- Storage:
- 2 × PCIe 5.0 M.2 Slots
- 2 × PCIe 4.0 M.2 Slots
- 4 × SATA 6Gb/s
- Graphics Outputs:
- 2 × USB4 Type-C® (DisplayPort Alt Mode)
- 1 × HDMI 2.1
- Networking:
- Dual 5GbE LAN
- Wi-Fi 7 (802.11be)
- Bluetooth® 5.4
- Audio:
- Realtek® ALC1220 High Definition Audio
- 7.1-Channel HD Audio
- Optical S/PDIF Out
- Rear USB Ports:
- 2 × USB4 Type-C (40Gb/s)
- 1 × USB 3.2 Gen2x2 Type-C
- 5 × USB 3.2 Gen2 Type-A
- 3 × USB 3.2 Gen1 Type-A
- Internal Features:
- RGB Fusion
- Q-Flash Plus
- Clear CMOS Button
- EZ-Latch Plus
- M.2 EZ-Latch Click
- M.2 EZ-Flex
- DriverBIOS
- Power Design:
- 16+2+2 Twin Digital VRM
- 8-Layer 2X Copper PCB
- Premium Chokes & Capacitors
- Cooling Design:
- VRM Thermal Armor Advanced
- Direct-Touch Heatpipe
- M.2 Thermal Guard
- PCB Thermal Plate
- Operating System: Windows 11 (64-bit)
- Color: White / WOOD Edition
