Key Specifications
General

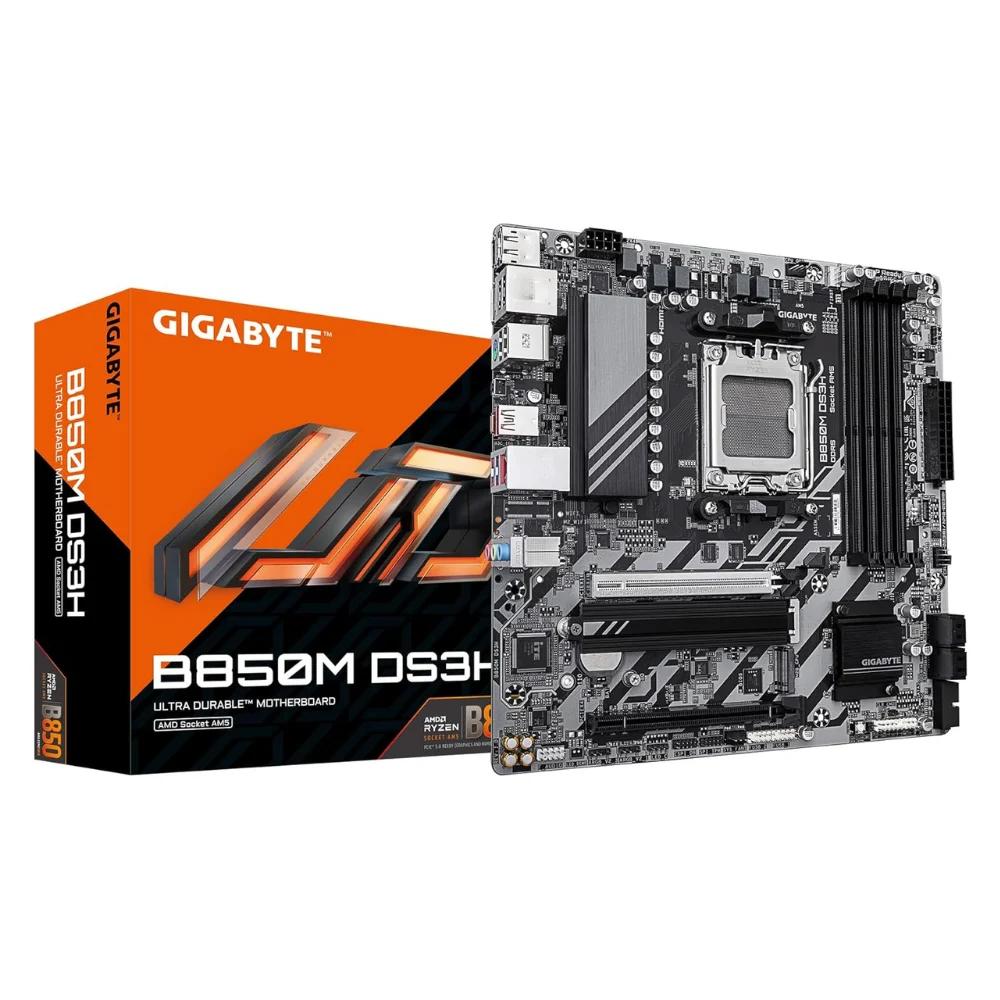

- Brand: GIGABYTE
- Model: B850M DS3H
- Chipset: AMD B850
- Socket: AMD AM5
- Form Factor: Micro ATX
- Dimensions: 24.4 × 24.4 cm
- CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Memory
- Memory Type: DDR5
- Memory Slots: 4 × DDR5 DIMM
- Maximum Memory: Up to 256GB
- Memory Architecture: Dual Channel
- Maximum Speed: Up to DDR5-8200 MT/s (O.C.)
- Supported Speeds: 8200 / 8000 / 7800 / 7600 / 7200 / 7000 / 6800 / 6666 / 6600 / 6400 / 6200 / 6000 / 5600 / 5200 / 4800 / 4400 MT/s
- Memory Support: Non-ECC Unbuffered DIMM
- Memory Profiles: AMD EXPO™ / Intel XMP
Expansion Slots
- 1 × PCIe 5.0 x16: CPU-connected
- PCIe 5.0 x16 Support: Ryzen 9000 / 7000 Series
- 1 × PCIe 4.0 x8: With Ryzen 8000 Phoenix 1
- 1 × PCIe 4.0 x4: With Ryzen 8000 Phoenix 2
- 1 × PCIe 3.0 x16: Running at x4 via chipset
Storage
- 2 × M.2 PCIe NVMe
- M.2 #1: PCIe 5.0 x4/x2
- M.2 #2: PCIe 4.0 x4/x2
- M.2 Form Factors: 25110 / 22110 / 2580 / 2280
- 4 × SATA 6Gb/s
- NVMe RAID: RAID 0 / 1 / 5 / 10
- SATA RAID: RAID 0 / 1 / 10
- RAID 5: Supported with AMD Ryzen 9000 Series
Graphics
- Integrated Graphics: AMD Radeon™ Graphics support through compatible Ryzen processors
- HDMI: 1 × HDMI 2.1
- HDMI Resolution: Up to 4096 × 2160 @ 60Hz
- DisplayPort: 2 × DisplayPort 1.4
- DisplayPort Resolution: Up to 3840 × 2160 @ 144Hz
- Multi-Display: Up to 3 displays simultaneously
Networking
- LAN: Realtek® 2.5GbE LAN
- LAN Speed: 2.5Gbps / 1Gbps / 100Mbps
- Wi-Fi: Not Included
- Bluetooth: Not Included
Audio
- Audio Codec: Realtek® Audio CODEC
- Audio: High Definition Audio
- Audio Channels: 2 / 4 / 5.1 / 7.1-channel
- Audio Outputs: 3 × Audio Jacks
USB & Connectivity
- Rear USB Type-C: 1 × USB 3.2 Gen 2
- Rear USB Type-A: 1 × USB 3.2 Gen 2
- Rear USB 3.2 Gen 1: 2 ×
- Rear USB 2.0: 4 ×
- Front USB Type-C Header: 1 × USB 3.2 Gen 2
- Front USB 3.2 Gen 1 Header: 1 ×
- Front USB 2.0 Headers: 2 ×
- RJ-45 LAN: 1 ×
- PS/2: 1 × Keyboard/Mouse port
- Q-Flash Plus: Supported
Cooling & RGB
- CPU Fan Header: 1 ×
- CPU Fan / Water Cooling Pump Header: 1 ×
- System Fan Header: 1 ×
- System Fan / Water Cooling Pump Header: 1 ×
- Addressable RGB Gen2 Headers: 3 ×
- RGB LED Header: 1 ×
- Fan Speed Control: Supported
- Temperature / Voltage Monitoring: Supported
Internal Connectors
- 24-Pin ATX Main Power: 1 ×
- 8-Pin ATX 12V: 1 ×
- M.2 Connectors: 2 ×
- SATA 6Gb/s: 4 ×
- Front Panel Header: 1 ×
- Front Audio Header: 1 ×
- TPM Header: 1 ×
- Reset Button: 1 ×
- Clear CMOS Jumper: 1 ×
Rear I/O
- 1 × HDMI
- 2 × DisplayPort
- 1 × Q-Flash Plus Button
- 1 × PS/2 Keyboard/Mouse
- 1 × USB 3.2 Gen 2 Type-A
- 1 × USB 3.2 Gen 2 Type-C
- 2 × USB 3.2 Gen 1
- 4 × USB 2.0
- 1 × RJ-45 2.5GbE
- 3 × Audio Jacks
Features
- GIGABYTE Control Center (GCC)
- Q-Flash
- Q-Flash Plus
- Smart Backup
- 256 Mbit UEFI BIOS
- Norton Internet Security OEM
- Windows 11 64-bit Support
- Windows 10 64-bit Support
