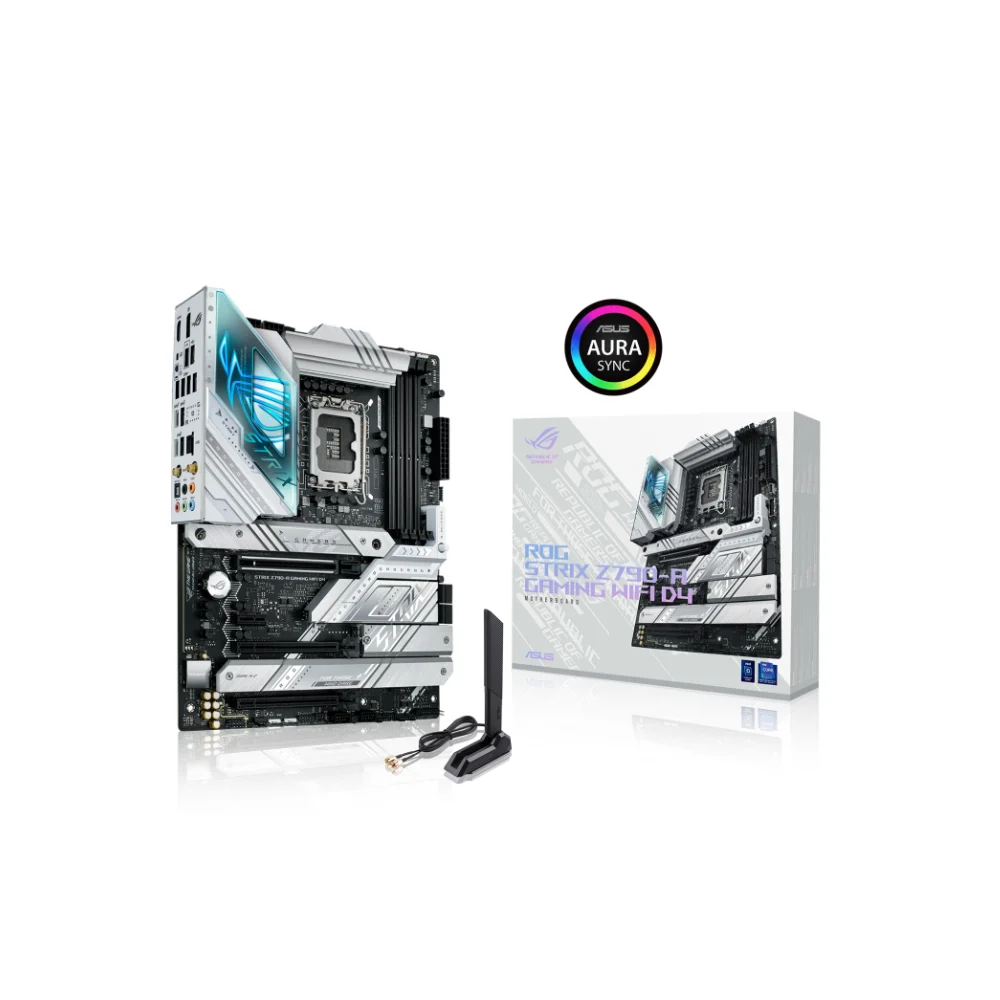

Key Features
- Supports Intel® Core™ 14th, 13th & 12th Generation Processors (LGA1700)
- Intel® Z790 Express Chipset
- ATX Form Factor
- 4 × DDR4 DIMM Slots, Up to 128GB Memory
- DDR4 Memory Support up to 5333MT/s (OC)
- 1 × PCIe 5.0 x16 Graphics Slot
- 4 × M.2 NVMe SSD Slots (1 × PCIe 4.0 x4, 3 × PCIe 4.0 x4)
- 4 × SATA III 6Gb/s Ports
- Integrated Wi-Fi 6E (802.11ax)
- Bluetooth® 5.3 Connectivity
- Intel® 2.5 Gigabit Ethernet LAN
- USB 3.2 Gen 2×2 Type-C® (20Gb/s)
- Multiple USB 3.2 Gen 2, Gen 1 & USB 2.0 Ports
- HDMI™ 2.1 and DisplayPort 1.4 Video Outputs
- ROG SupremeFX 7.1-Channel High Definition Audio
- 16+1 Power Stages with Premium VRM Design
- Large VRM & M.2 Heatsinks
- PCIe® Q-Release & M.2 Q-Latch
- BIOS FlashBack™ Button
- AI Overclocking & AI Cooling II
- Aura Sync RGB with Addressable Gen 2 Headers
